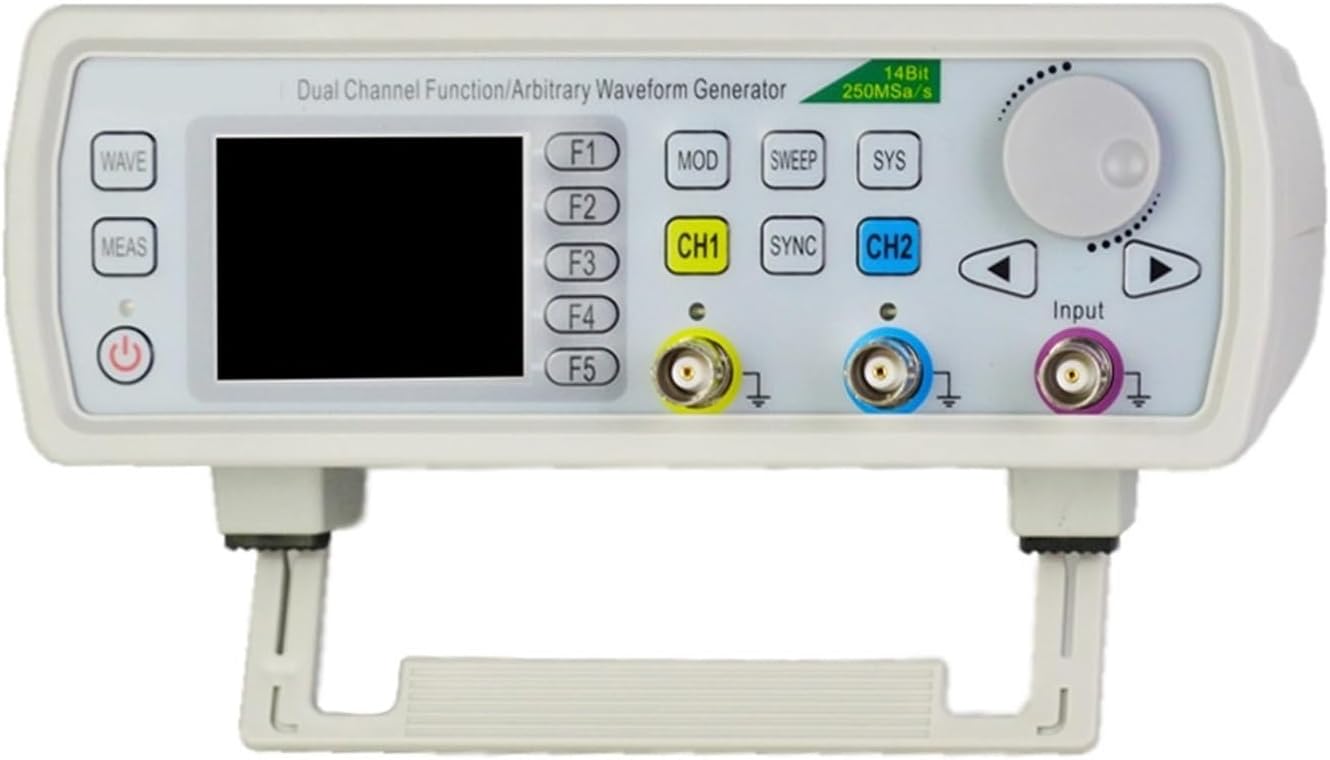

FY6600-60MHz High Precision Digital Control Dual-channel DDS Function Arbitrary Signal Generator

Model：FY6600-60M Sine：0~60MHzSquare：0~25MHzRamp, Triangle：0~10MHzPulse：0~10MHzTTL/CMOS：0~10MHzArbitrary Waveform：0~10MHzMinimum pulse width：20ns(All models of pulse wave minimum width can reach 20ns)Min. Resolution on all frequency range：1μHz (Min. resolution can reach 1μHz on all frequency range to ensure adjusting accuracy under high frequency. For example, it can output 10.000000000001MHz signal).Accuracy：±20ppmStability：±1ppm/ 3hoursWaveform CharacteristicsWaveforms：Sine, Square (Duty Cycle adjustable), Pulse (Pulse width and cycle time can be set accurately), Triangle/Ramp, Sawtooth Wave, CMOS, Four channels TTL, DC, Half wave, Full wave, Positive Step, Inverse Step, Positive Exponent, Inverse Exponent, Lorenz Pulse, Multitone, Noise, ECG, Trapezoidal Pulse, Sinc Pulse, Narrow Pulse, Gauss White Noise, AM, FM, and other 64 sets customer-defined waveform.Non-Volatile Storage：Can store 64 user-defined arbitrary waveforms, (8K 14bits) * 64Waveform Length：8192 points * 14bitsSampling Rate：250MSa/sVertical Resolution：14 bitsSine<;1MHz); ≥45dBc(1MHz~20MHz);<;0.5% (20Hz~20kHz,0dBm)Square<;5V)Overshoot：≤5%Duty Cycle：0.1%~99.9% (Resolution 0.1%)Sawtooth waveLinearity：>99% (0.01Hz~10kHz)Output characteristicsAmplitude（VPP）Frequency≤10MHz: 1mVpp~20Vpp;<;Frequency≤20MHz: 1mVpp~10Vpp;Frequency>20MHz: 1mVpp~5Vpp;Resolution：1mVAmplitude Stability：±0.5%/ 5 HoursAmplitude flatness：±2.5%(<;10MHz);±5%(>10MHz);Waveform OutputImpedance：50Ω±10%（Typical）Protection：All channels can work more than 60 seconds when the load is short-circuited.DC OffsetOffset Range：Frequency≤20MHz: ±10V; Frequency>20MHz: ±2.5V;Offset Resolution：1mVPhase FeaturePhase range：0~359.9°Phas

• Displays the parameters and waveforms of the two channels at the same time. Each function has a separate user interface， different contents will be displayed when different functions are enabled.
• The instrument uses 14-bit high-speed D/A converter chip (5Vpp output quantization error is less than 1mV), 250MSa/s sample rate, 14bits vertical resolution.
• Enable to store 64 arbitrary waveform data files, each one of waveform storage depth 8192 points * 14bits;
• Various modulation types: AM, FM, PM, ASK, FSK and PSK modulations.
• The minimum output amplitude is 1mV , minimum amplitude resolution can be up to 1mV.
